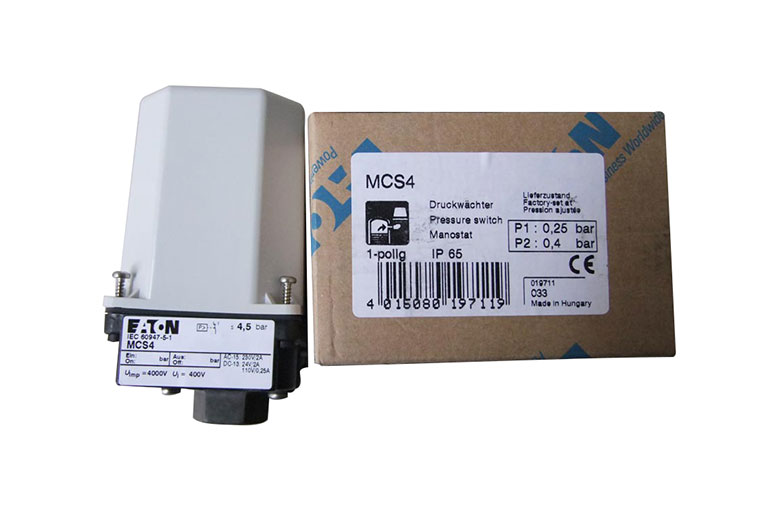

Features:

• Pressure pipe flange R ¼”

• If required: pressure pipe flange R ½”

• IP65 in conjunction with V-M20 cable gland

• 1 Insulated protective conductor terminal

• 2 cable entry knockouts for M20

• Neoprene membrane, resistant to aging, air, engine oil, and water min. -25 °C, max. +80 °C

Cut-in and cut-out pressures are factory-preset as specified with type suffix: ?#203948

R ¼” corresponds to G ¼

R ½” corresponds to G ½ according to ISO 228-1

Auxiliary contact to IEC/EN 60947-1

規(guī)格型號
MCS4
MCS4-G
MCS4SONDOD
MCS4-SOND910-G
MCS4FORMCDN
MCSN4-V
MCS4-U
MCS4SONDOD
BBC-MCS4
MCS11
MCS11-G
MCS11SONDOD
MCS11-SOND910-G
MCSN11-V
MCS11-U
MCSN11
MCS11FORMCDN
MCSN22-V
MCSN16-V
MCSN22
MCS22-G
MCSN16FORMCDN
MCSN16
MCS22SONDOD
MCS22-SOND910-G
MCS22FORMCDN
MCS22FORMCDN
MCS22
SW
MCSN4
SBO-SW
STO-SW
SK-SW
+S3-MCS
M-MCS
E8-MCS
HTR-MCSN
+M-MCS
+W-MCS
W-MCS
4Z133-05.05
+E8-MCS
+PMIN(*)/PMAX(*)
+SOND-937
